Key Product Data
Model: 5094-AEN2TR
Brand: Allen-Bradley
Manufacturer: Rockwell Automation
Product Family: FLEX 5000 I/O
Product Type: EtherNet/IP Communication Adapter
UPC: 889508455990
Supported Modules: Up to 16 modules
Network Connectivity: Ethernet, RJ45 twisted-pair ports
Port Configuration: 2 copper Ethernet ports
Network Speed: 1 Gbps EtherNet/IP connectivity
Network Topologies: Star, linear, Device Level Ring (DLR)
Power Supply Range: 18–32 V DC
Current Consumption: 1,880 mA
Mounting: DIN rail
Operating Temperature: -40 to 70 °C
Lifecycle Status: Active
Rockwell Automation identifies this model as a FLEX 5000 Ethernet Adapter for 16 modules with RJ45 connectivity. Electrical and mounting details above are cross-checked against distributor product listings.
Product Introduction

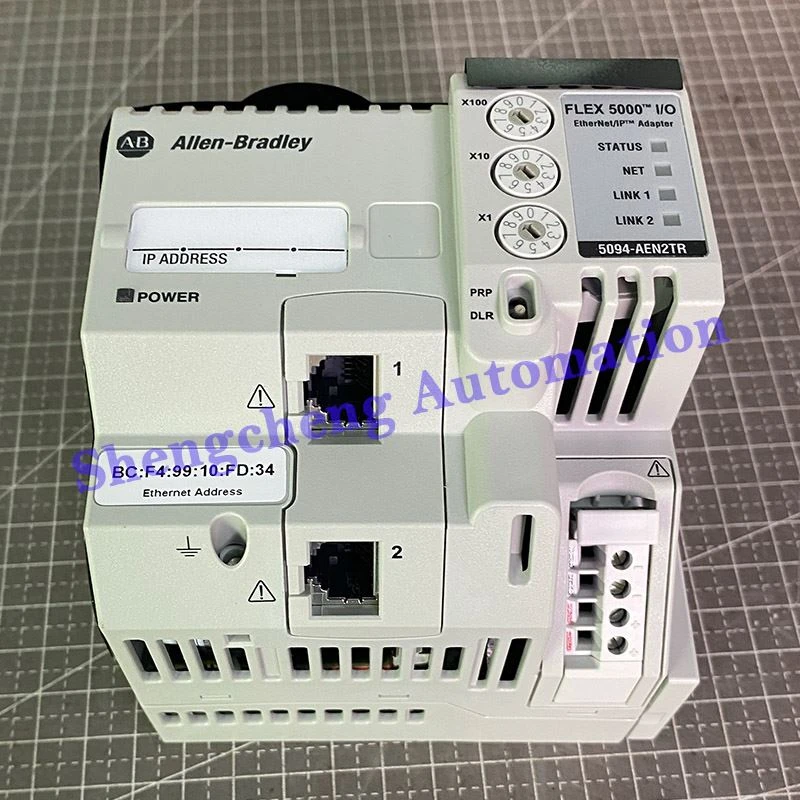

The 5094-AEN2TR is an Allen-Bradley FLEX 5000 Ethernet adapter designed to connect a distributed I/O assembly to an EtherNet/IP industrial network. It serves as the communication interface for a FLEX 5000 I/O station, allowing supported I/O modules to exchange data with the associated automation system.
The adapter supports configurations containing up to 16 modules. Its two copper Ethernet ports provide network connectivity for industrial architectures using supported arrangements such as star, linear and Device Level Ring topologies. The exact network configuration depends on the connected devices and system design.
Communication and Network Integration
The 5094-AEN2TR belongs to the FLEX 5000 I/O platform. It is intended for distributed I/O installations where field signals are collected near equipment and communicated to a controller over EtherNet/IP.
Its two RJ45 copper ports support network connection and topology arrangements appropriate to the installation. When replacing an existing adapter, verify the network design, firmware requirements and connected FLEX 5000 module configuration rather than selecting a unit solely by its external appearance.
Rockwell Automation provides model-specific electronic data sheet (EDS) files and adapter firmware through its official product page. These resources are useful when checking device recognition and network integration requirements.
Module Capacity and Installation
The adapter supports up to 16 FLEX 5000 modules in the associated I/O assembly. Its DIN-rail mounting format is suited to industrial control cabinets and distributed I/O installations.
The specified supply range is 18–32 V DC, with a listed current consumption of 1,880 mA. Check the available control-cabinet power capacity and the manufacturer's installation requirements before commissioning a replacement unit.
Can't find the version you need?
Environmental and Lifecycle Information
Rockwell Automation lists the 5094-AEN2TR as an active product. Its product information gives a temperature rating of -40 to 70 °C, with a temperature-related rating of ±300 ns/°C. Confirm the complete environmental specifications and any application-specific certification requirements against the manufacturer's documentation for the intended installation.
Identification and Ordering
The full catalog number 5094-AEN2TR is the primary identifier for this Ethernet adapter. The UPC provides an additional identifier for procurement records and product matching.
This model should be distinguished from the 5094-AEN2TRXT, a separate FLEX 5000 XT product with a different catalog number and UPC. Do not assume the two variants are interchangeable without confirming environmental and application requirements.
Alternative Names
5094-AEN2TR
Allen-Bradley 5094-AEN2TR
Rockwell Automation 5094-AEN2TR
FLEX 5000 5094-AEN2TR
FLEX 5000 Ethernet Adapter
5094 Ethernet Adapter
5094 16-Module Ethernet Adapter
5094 RJ45 Ethernet Adapter
5094 EtherNet/IP Adapter
UPC 889508455990
FAQ
What is the Allen-Bradley 5094-AEN2TR?
It is a FLEX 5000 Ethernet adapter that connects a distributed I/O assembly to an EtherNet/IP industrial network and supports up to 16 modules.
How many modules does the 5094-AEN2TR support?
The product designation specifies support for up to 16 modules. Confirm the complete assembly configuration against the FLEX 5000 documentation before installation.
What network connection does it use?
The adapter uses RJ45 copper Ethernet connectivity and has two Ethernet ports. Supported network arrangements depend on the system architecture.
What is its supply voltage range?
The listed supply range is 18–32 V DC, with a current consumption of 1,880 mA. Check the official installation documentation for the requirements of the specific assembly.
Is the 5094-AEN2TR still an active product?
Rockwell Automation currently lists the 5094-AEN2TR lifecycle status as Active.
Is the 5094-AEN2TR the same as the 5094-AEN2TRXT?
No. They are distinct catalog numbers. The XT version is listed separately by Rockwell Automation, so verify the full model number before ordering.
Procurement Reference
Model: 5094-AEN2TR
Manufacturer: Allen-Bradley / Rockwell Automation
Product Family: FLEX 5000 I/O
Product Description: Ethernet Adapter, 16 Modules, RJ45
UPC: 889508455990
For replacement procurement, confirm the complete catalog number, module capacity, network port requirements, firmware compatibility and power-supply capacity against the existing FLEX 5000 installation.
