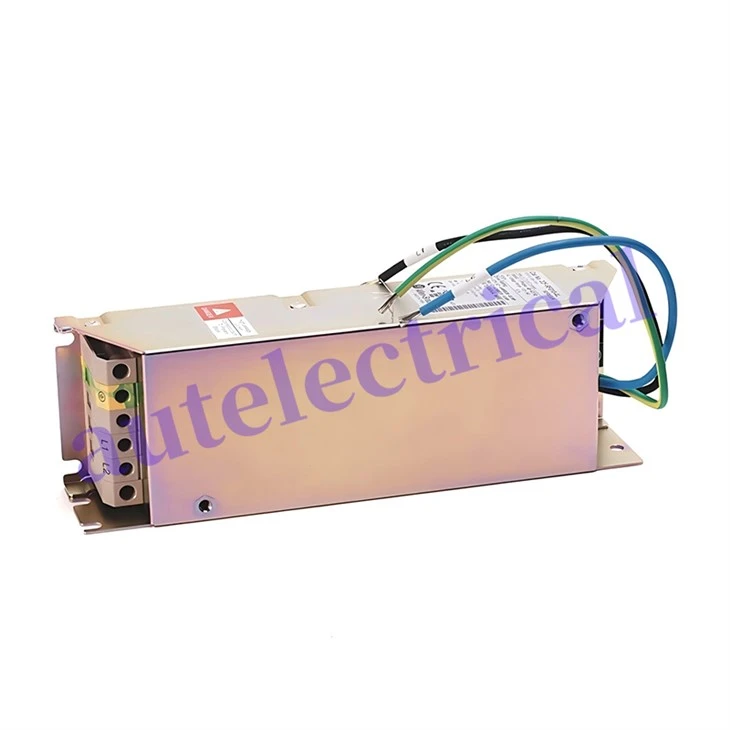

22-RF018-CL Allen-Bradley Line Filter

22-RF018-CL is an Allen-Bradley EMC line filter reference associated with PowerFlex drive installation configurations.

Unlike active control devices that process commands or generate motion signals, this component belongs to the power interface layer of a drive system. It is installed as part of the electrical connection path between the incoming supply and the connected drive equipment.

Within industrial documentation, the complete catalog reference is normally used to identify the correct filter configuration for a specific drive installation.

Position in Drive Power Architecture



The line filter belongs to the electrical interface section of a motor control installation.



System Section	Component Role
Incoming Power	Supplies AC source
Line Filter	Conditions electrical interface
AC Drive	Controls motor operation
Motor	Produces mechanical output



Rather than controlling the motor directly, the filter supports the connection environment of the drive system.



Industrial facilities usually document filter components together with the associated drive equipment.

The complete catalog number helps distinguish similar-looking filter options used in different drive configurations.

When selecting a line filter for an existing installation, maintenance teams normally review:

The filter reference should be matched with the drive system record rather than selected only by physical appearance.





Drive Accessory Relationship

The 22-RF018-CL belongs to the accessory ecosystem surrounding Allen-Bradley PowerFlex drive products.



Product Layer	Example Function
Drive Unit	Motor speed control
Human Interface	Operator interaction
Communication Accessory	Data exchange
Line Filter	Electrical interface support



This positioning separates the filter from active control components within the automation system.

The component may appear in several industrial records:

• electrical cabinet documentation;
• drive installation files;
• spare-part databases;
• preventive maintenance records;
• equipment modification history.

Maintaining the original Allen-Bradley reference helps preserve consistency throughout the equipment lifecycle.

For industrial spare management, the 22-RF018-CL reference is typically associated with:

• installed drive systems;
• electrical cabinet records;
• replacement planning;
• accessory inventory.

Unlike consumable parts, a line filter is normally tracked as a fixed electrical accessory connected to a specific drive installation.
