Key Product Data
Model: CP1-10G-10
Brand: ABB
Product ID: 1SFA619100R1012
EAN: 7320500550373
Product Type: Compact Pushbutton
Product Range: CP1
Function: Momentary
Actuator Type: Flush
Color: Green
Illumination: Non-illuminated
Bezel Material: Black plastic
Contact Configuration: 1NO, 0NC
Rated Insulation Voltage: 300 V
Rated Impulse Withstand Voltage: 6 kV
Connection: Screw terminals
Mounting: Flush
Front Protection: IP66, IP67, IP69K
Operating Temperature: -25 to +70 °C
Storage Temperature: -40 to +85 °C
Mechanical Durability: 0.5 million operations
Product Net Weight: 0.018 kg
Product Introduction

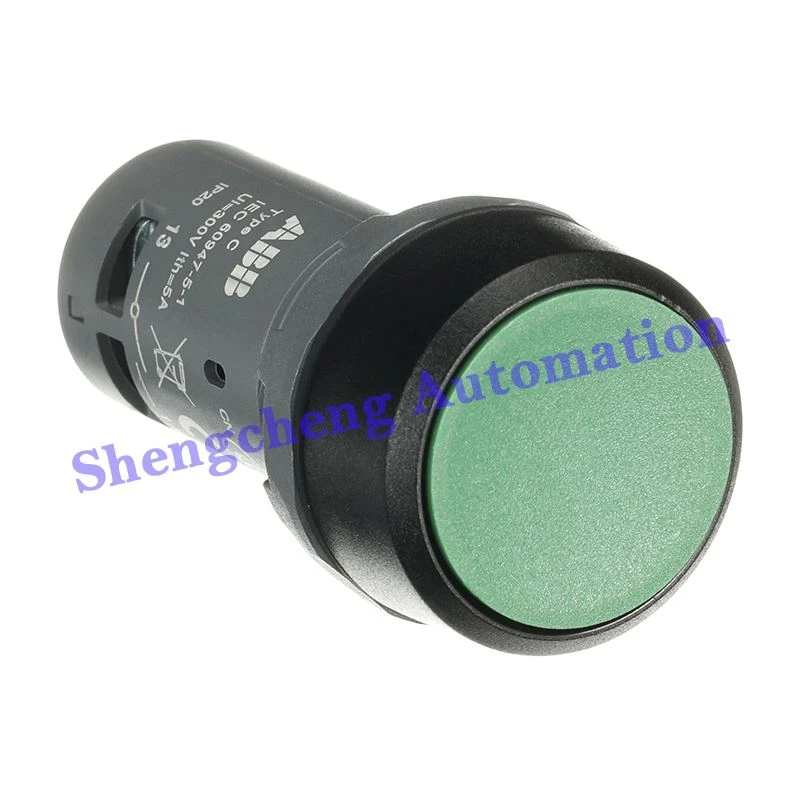

The ABB CP1-10G-10 is a compact, green pushbutton designed for momentary operation in industrial control and signaling applications. It features a flush actuator, black plastic bezel and non-illuminated construction, with one normally open contact for switching and control functions.
As part of the ABB CP1 Compact range, this pushbutton combines the actuator and contact arrangement into a compact device, making it suitable for control panels and operator interfaces where a simple momentary command is required. Its front protection rating supports use in environments where resistance to dust and water is important.
Control and Switching Characteristics
CP1-10G-10 uses a 1NO contact configuration and operates as a momentary pushbutton. The non-illuminated design provides a straightforward control element without an integrated light source.
The device has a rated insulation voltage of 300 V and a rated impulse withstand voltage of 6 kV. ABB specifies a maximum rated operational voltage of 300 V, with AC-15 operational current ratings of 2 A at 220/240 V and DC-13 ratings of 0.3 A at 24 V and 0.2 A at 125 V.
Can't find the version you need?
Construction and Installation
The flush green actuator is combined with a black plastic bezel in a compact housing measuring approximately 30 mm wide, 30 mm high and 55 mm deep. The pushbutton uses screw terminals for electrical connection and is designed for flush mounting.
The connection system accepts flexible or solid conductors in the specified 0.5–1.5 mm² range, while UL/CSA conductor capacity is 22–14 AWG. The specified terminal tightening torque is 0.8 N·m.
Environmental Protection
The CP1-10G-10 provides multiple front protection ratings, including IP66, IP67 and IP69K, while the terminals are rated IP20. ABB also specifies NEMA Type 1, Type 12, Type 13, Type 3R, Type 4 and Type 4X enclosure classifications for the device.
The operating temperature range is -25 to +70 °C, with a storage range of -40 to +85 °C. The product has a mechanical durability rating of 0.5 million operations.
Typical Application
This compact pushbutton can be used as a manual command device in industrial control panels, operator stations, machinery control assemblies and other electrical control interfaces. Its green flush actuator provides a clearly identifiable momentary control point where illumination is not required.
The 1NO contact configuration makes the CP1-10G-10 suitable for straightforward start, command, enable or other momentary switching functions within the applicable control circuit.
Product Identification
The CP1-10G-10 is identified by ABB Product ID 1SFA619100R1012 and EAN 7320500550373. When sourcing a replacement or additional pushbutton, matching the complete model and contact configuration helps ensure the correct device is selected.
